Utilities
ImportExport
This tool supports developers, system administrators and users on Rulestream projects throughout the entire cycle, from development to testing and distribution. Utility to transfer DB between different Rulestream systems. Essential, when you have several development environments, quality assurance challenges, and multiple production servers.
This tool allows you to easily move rules from development / test to production or between different DBs. Allows the user to select specific Part Families or all Part Families belonging to a specific Rulestream application and move them to the target environment.
For more information visit the dedicated page
Rulestream PropMgr
The RsPropMgr tool adds features that further enhance the rules creation environment within the Rulestream platform. Main aids for users and developers:
- Search and replace text in formulas
- List and access modified formulas by date and version
- Replacing text in multiple formulas
- Bulk creation / deletion of multiple properties in one Part Family
- Property dump handling in the component DB at runtime
rsDeployer
rsDeployer is a customer tailored solution that supports automatic data movement between Rulestream environments (Development -> Quality Assurance -> Production) and management of Rulestream users in multiple environments.
Main features
• Fully automatic data deployment across RS environments including
o Master Directory files/folders safe copying (all changes are reverted in case of any failure)
o Rulestream DLL’s source files
o Automatic versioning of Rulestream DLL’s
o Safe Component database data movement (all changes are reverted in case of any failure)
o Changes tracking (release notes, release package content tracking etc.)
• Multi environment users management from single application
• Release process workflow support (Role based approvals at each movement steps)
Tailored to customer’s need
• Customer’s branding applicable to UI
• Customer’s authentication support (i.e. AD groups)
• Customer’s RS extensions support (i.e. Custom integrations data movement)
• Archiving completed release packages contents to customer infrastructure (BOX, SharePoint…)
Benefits
• Decrease of release packages preparation and movement time
• Easier maintenance of users/permissions
• Less movement errors (forgotten file, improper version of file, forgotten table movement etc.)
• Easy releases information reports (all releases information collected in single place)

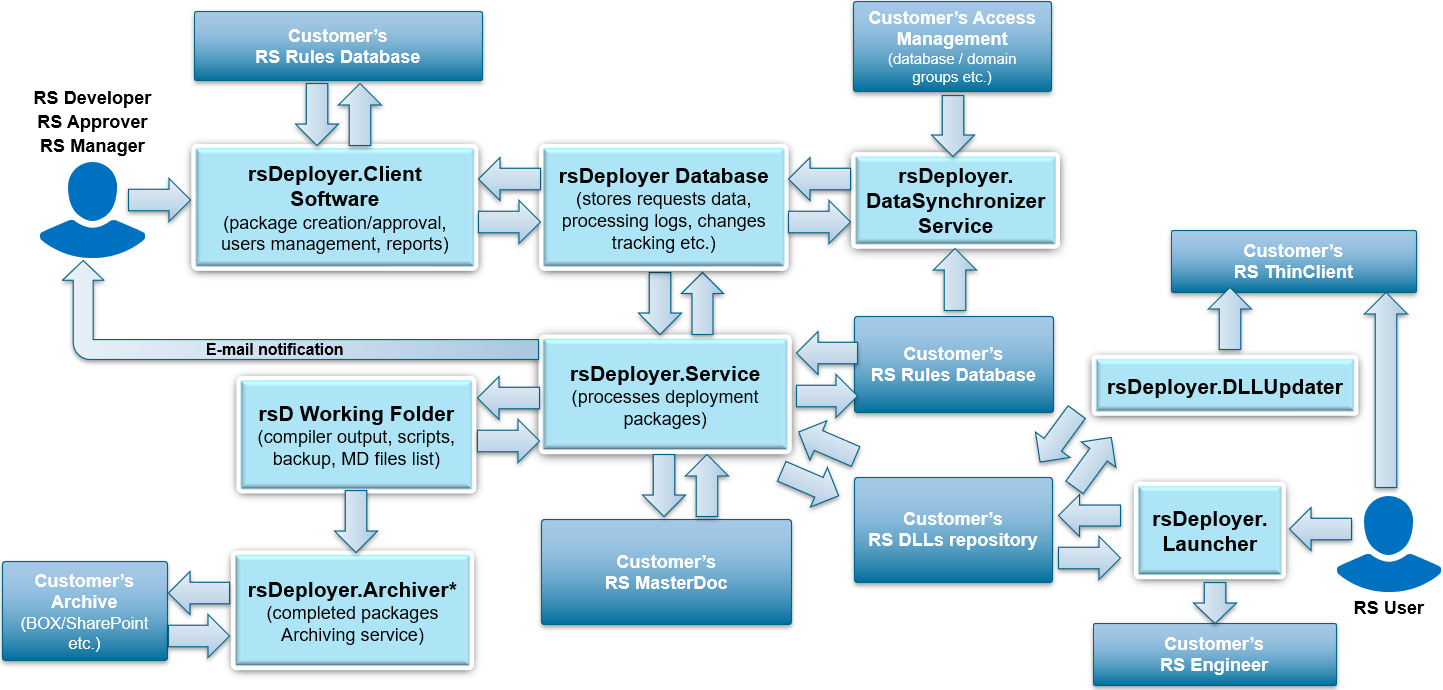

Interactions Schema

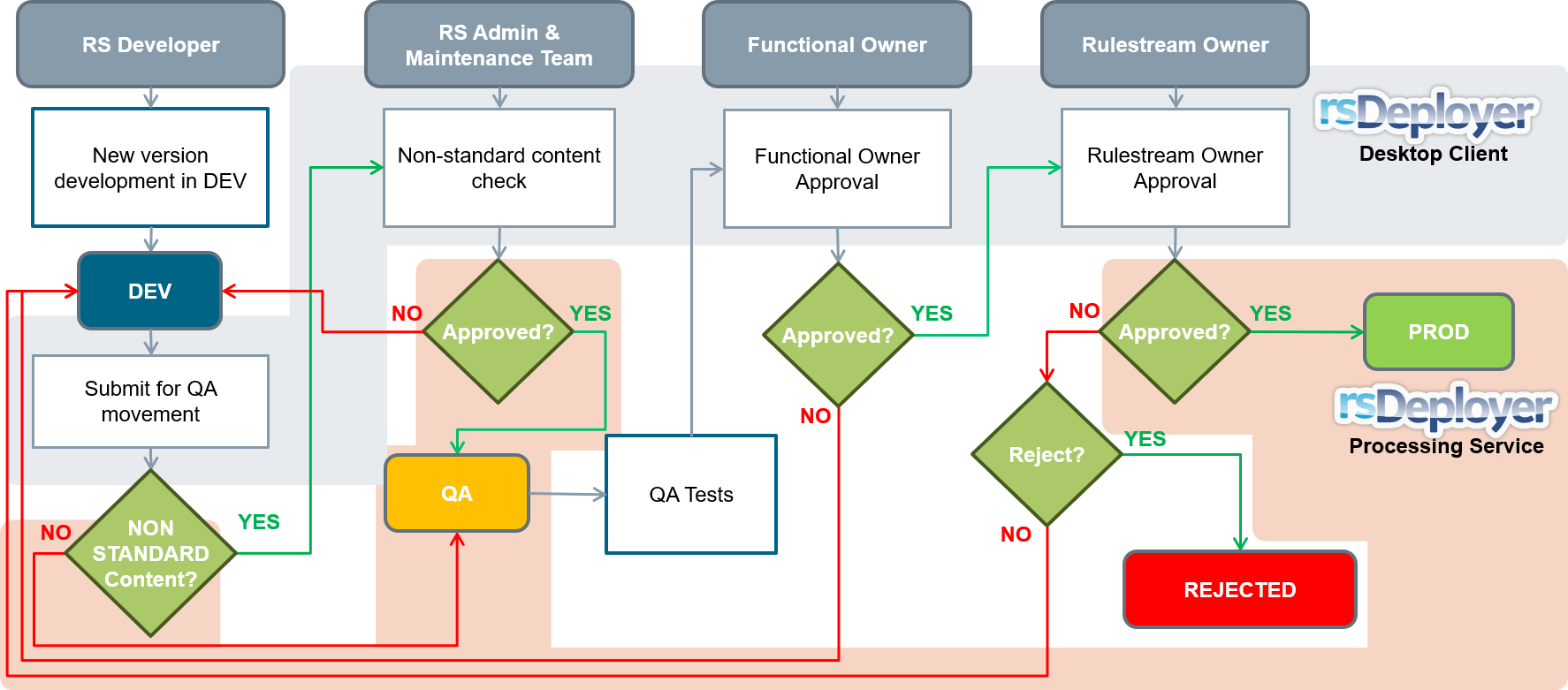

Process Schema
RsSqlMonitoringTool
Rulestream monitoring with automatic email notifications.
RS Engineer-Launcher
Launcher application that allows admin team to setup/maintain/update environment and or machine setting required to run Rulestream Engineer.
Supported features
- Updating of Rulestream Application DLLs for compiled profile
- Checking enviromnent of rulestream Engineer by checking accessibility/environment variables/registry keys
- Setting environment required by Rulestream Engineer by automatically deploying in RS ini file, setting environment variables and/or registry keys
- Running scripts (i.e. for environment/software or even automated Rulestream update)
RS license management
Set of DB patches enabling automated license attachment for Rulestream users and automatic detachment of license after specific period of inactivity (that needs to be agreed with Siemens or reseller).
RS Project DB Cleanup
Cleanup manager for periodic and automatic cleaning of Rulestream Project DB.
KBEXpress
KBXpress enhances the Rulestream environment by giving customers the ability to easily specify and describe product models and design rules using mind maps.
Starting from a Mind Map, the tool is able to automatically generate a complete Rulestream application.
Multi CAD Integration
A suite of solutions to integrate NX, SolidWorks, Solid Edge and Solid Edge Express and support the development of CAD configurators and automation.
CADENAS Integration
This tool allows you to connect the power of Rulestream and CADENAS allowing the exchange of consistent data between the configurators and the catalog of digital parts.
Modeling Integration
A suite of solutions to integrate physical models developed using MATLAB, OCTAVE and MODELICA.
MS Office Integration
Integration with Office: Full range of features to enable consistent data exchange between Rulestream and Microsoft Word and Excel.
ModelService Tool
Batch Multithreading Service able to perform Rulestream configuration sessions, generating all related technical documentation through CAD and Office integration and recording all calculation sessions within the project DB.
